Rapid-response aerial interception for very-short-range air defence

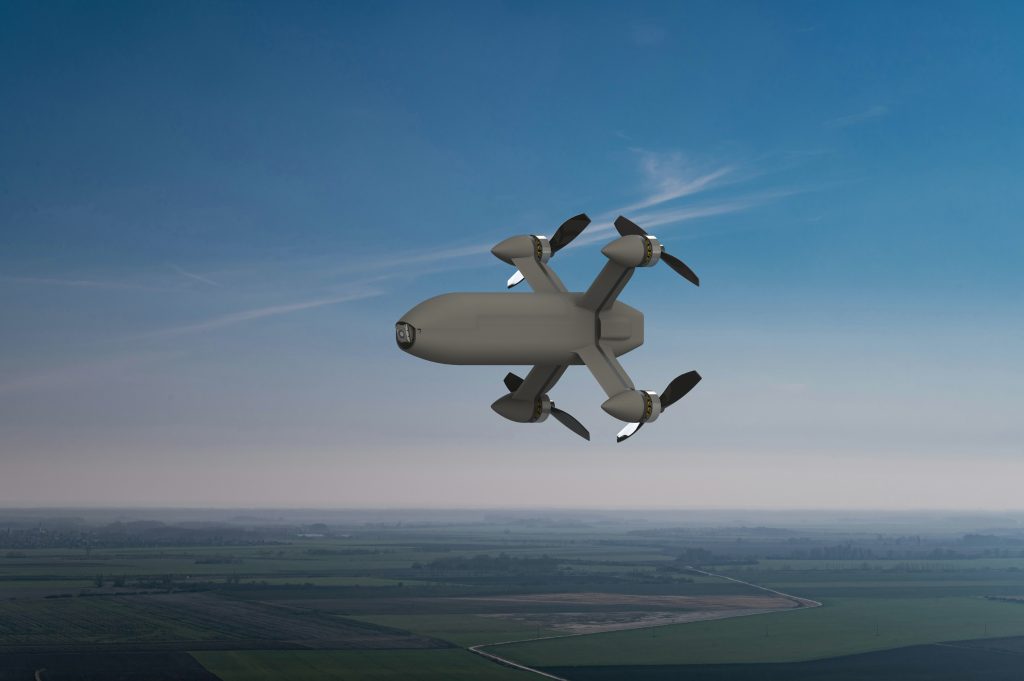

The AERIS HSI-5 is a compact high-speed unmanned aerial platform developed for Very Short Range Air Defence (VSHORAD) and counter-aerial-threat applications.

Designed around a low-drag 5-inch-class airframe and high-performance electric propulsion, the HS5 combines rapid response, high-speed flight and a compact operational footprint in a reusable unmanned platform.

Its architecture enables:

  • Speed
    • High-speed aerodynamic flight provides rapid response and enables the platform to cover a localized defensive area quickly.
  • Compactness
    • The 5-inch-class architecture provides a small physical footprint while retaining the performance of a high-power unmanned aircraft.
  • Responsiveness
    • A lightweight electric platform enables rapid acceleration and agile flight characteristics in a compact package.

Technical Specifications

Airframe
ConfigurationHigh-speed multirotor
Propeller Class5-inch
StructureLightweight carbon-fiber airframe
Airframe DesignAerodynamic, low-drag configuration
DeploymentPortable platform
Platform TypeElectric UAV
Propulsion & Power
Power SystemElectric
Propulsion Configuration4-motor multirotor
Battery ArchitectureDual-battery

Avionics & Control System
Flight ControlIntegrated flight controller
Video SystemDigital FPV
NavigationGNSS
Operator InterfaceGround-based control and video system

Weight & Payload
Dry weight, without batteries700 g
Battery weight575 g
Payload capacity200 g
Takeoff weight with payload1.475 kg
Performance
Maximum Speed350 km/h
High-Speed Flight Endurance~2–4 min
Mixed-Flight Endurance~5–8 min
Cruise Speed200 km/h
Operational Range20 km
Maximum Altitude6 km

Operating Conditions
DeploymentPortable
Launch / RecoveryConfiguration-dependent
Intended MarketVery Short Range Air Defence (VSHORAD)
Product ClassificationHigh-speed interceptor platform
System IntegrationIndependent or part of a layered aerial-defence
Development StatusPrototype / under development
